In order to use ODBC driver you have to specify ODBC DSN (Data Source Name) in your system.
I don't know all options of connection string, but I always use system wizard to build necessary connection string.
See below how to use system dialogs and wizards to create connection string. This is standard interface of system.
When I already have configured system or user DSN in my ODBC configuration.

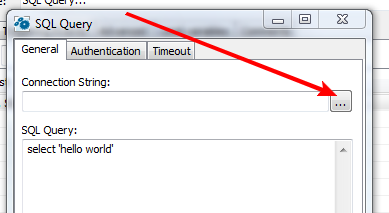

1. Open action editor and press the button to open wizard
- begin.png (20.01 KiB) Viewed 16998 times

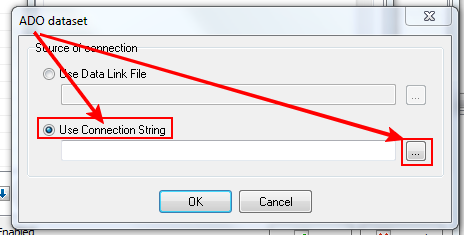

2. Choose "Use connection string" and press the button at the right.
- step1.png (22.4 KiB) Viewed 16998 times

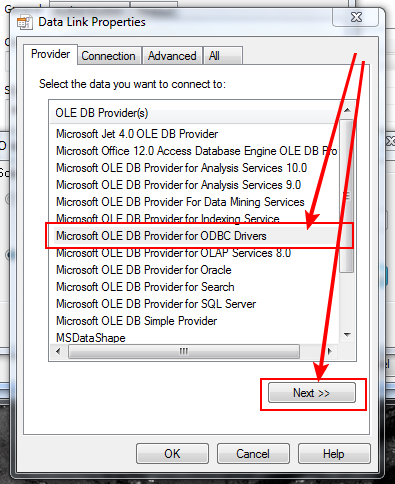

3. Choose "Microsoft OLE DB provider for ODBC drivers" and press "Next"
- step2.png (53.17 KiB) Viewed 16998 times

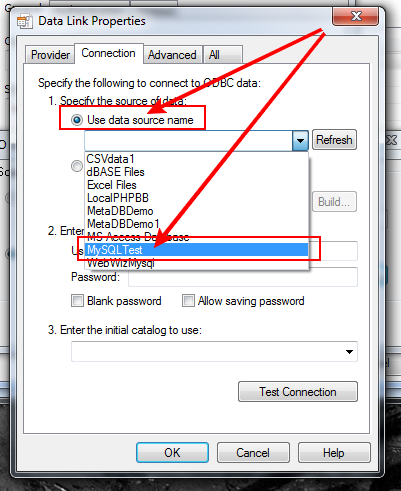

4. Choose "Use data source name" and select configured DSN in the drop-down list
- step3-1.png (57.65 KiB) Viewed 16998 times
Now you can test the connection and press OK.
I get such connection string:
Provider=MSDASQL.1;Persist Security Info=False;Data Source=MySQLTest
How to create new DSN in my ODBC configuration and use it.
1-st and 2-nd steps the same:
1. Open action editor and press the button to open wizard
- begin.png (20.01 KiB) Viewed 16998 times
2. Choose "Use connection string" and press the button at the right.
- step1.png (22.4 KiB) Viewed 16998 times

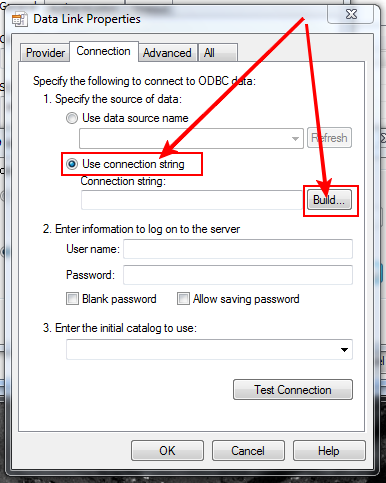

3. Choose "Use connection string" and press "Build" button
- step3-2-1.png (48.1 KiB) Viewed 16998 times

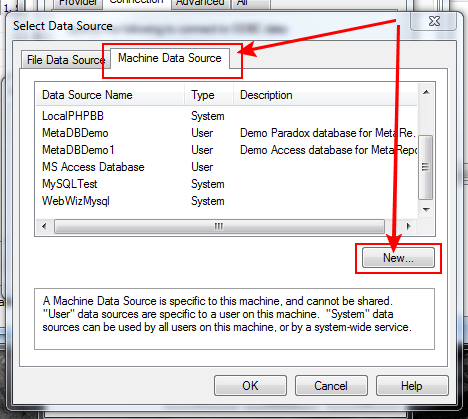

4. Select "Machine data source" tab and press "New" button
- step3-2-2.png (46.79 KiB) Viewed 16998 times

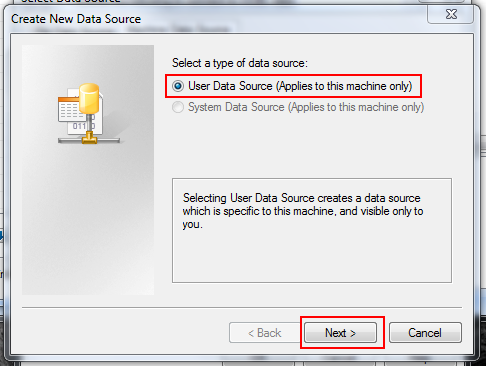

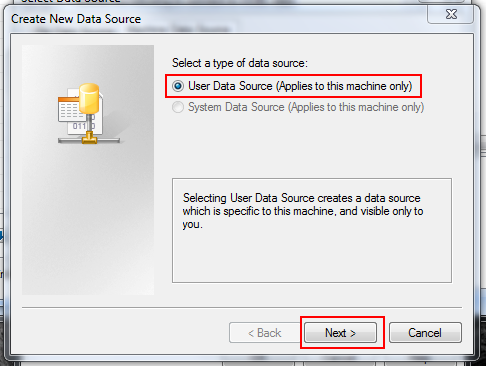

5. Select "User data source" and press "Next"
- step3-2-3.png (52.9 KiB) Viewed 16998 times

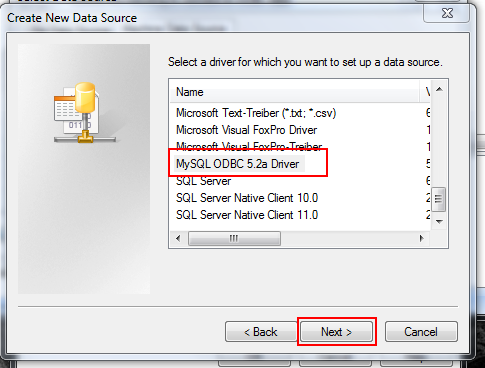

6. Select "MySQL ODBC driver" and press "Next"
- step3-2-4.png (52.9 KiB) Viewed 16998 times

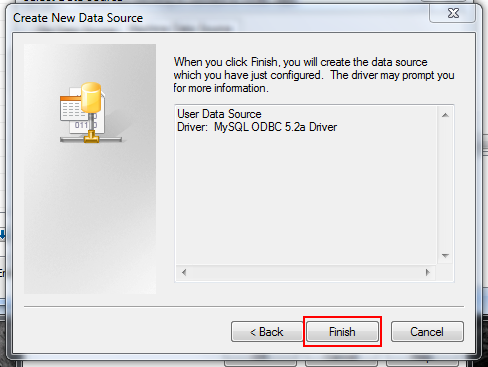

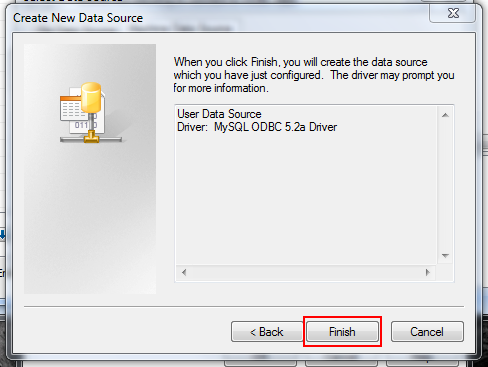

7. Press "Finish"
- step3-2-5.png (51.71 KiB) Viewed 16998 times

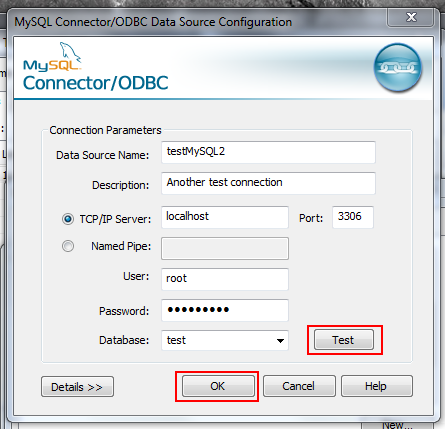

8. Now you see "MySQL connector" dialog. Input necessary parameters for this connection. I use
localhost as my server and
test as my database (choose from drop-down list)
You can test your connection and press OK to save parameters
- step3-2-6.png (56.99 KiB) Viewed 16998 times

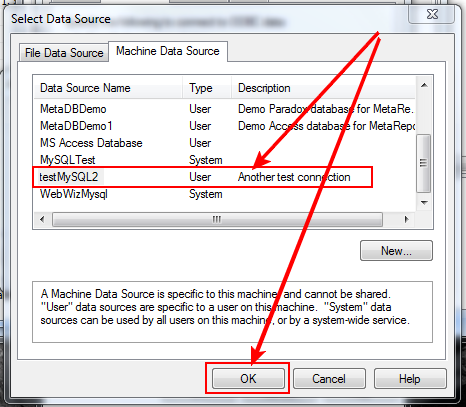

9. Select crated connection and press OK
- step3-2-7.png (47.2 KiB) Viewed 16998 times

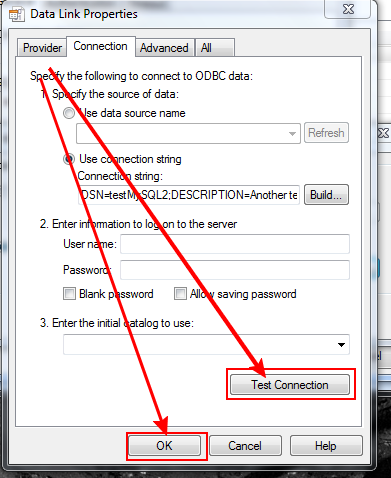

10. Test your connection and press OK to save data
- step3-2-8.png (51.87 KiB) Viewed 16998 times
I get such connection string:
Provider=MSDASQL.1;Persist Security Info=False;Extended Properties="DSN=testMySQL2;DESCRIPTION=Another test connection;SERVER=localhost;UID=root;DATABASE=test;PORT=3306"
Both configurations work well.
You can use new DSN as already configured DSN in other tasks.
Below is my small example:
Code: Select all
;*****************************
;* RoboTask Task file
;* Do not edit in text editor!
;*****************************
[Root]
ActionAfterRun=INTEGER|0
Actions=FOLDER
Automat=INTEGER|-1
CatID=INTEGER|693052941
Comment=STRINGLIST
ContinueOnError=INTEGER|0
ExternalName=STRING|"Task699"
Hide=INTEGER|0
ID=INTEGER|1804063903
LogOnAsUser=INTEGER|1
Name=STRING|"SQL Query2"
OnErrorTaskID=INTEGER|0
Priority=INTEGER|3
RunOnClose=INTEGER|0
RunOnStartup=INTEGER|0
ToLog=INTEGER|3
WriteGeneralLog=INTEGER|0
[Actions]
Action1=FOLDER
[Actions\Action1]
ActionID=STRING|"A_EXECSQL"
Enabled=INTEGER|-1
Name=STRING|"SQL Query"
Params=FOLDER
[Actions\Action1\Params]
assignvar=STRING|"0"
connectionstring=STRING|"Provider=MSDASQL.1;Persist Security Info=False;Extended Properties=""DSN=testMySQL2;DESCRIPTION=Another test connection;SERVER=localhost;UID=root;DATABASE=test;PORT=3306"""
override=STRING|"0"
password=STRING|"2005621899218992061821389"
sql=STRING|"""select 'hello world'"""
timeout=STRING|"60"
